Miniature DIN Circular PMT Socket A-3005



  • A-3005
  • Front View
  • Side View

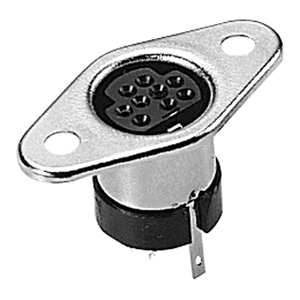

A3005

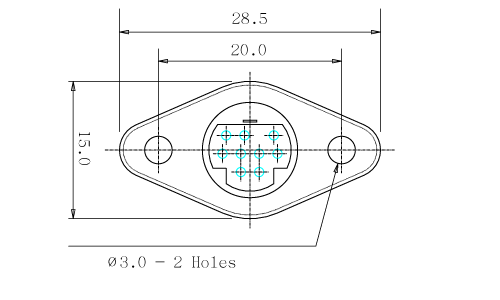

A3005 Front View

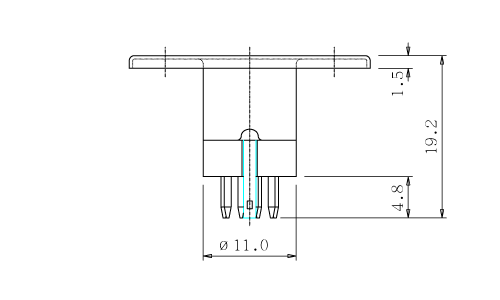

A3005 Side View



  • Specifications
    Metal Body: JIS G3141 SPCC-SD 0.4t Nickel
    Plastic Core: ABS PA-777D HB94
    Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD
    Grounding Piece: BSR-H 0.2t C5191 (PBP) Nickel
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
  • Characteristics
    Solder Type
    Vertical Socket
    9 Pin


  • Substitute Items





  • Mating Items
    A-9005
    A-9006
