Miniature DIN Circular PMT Socket A-3001
- A-3001-4P

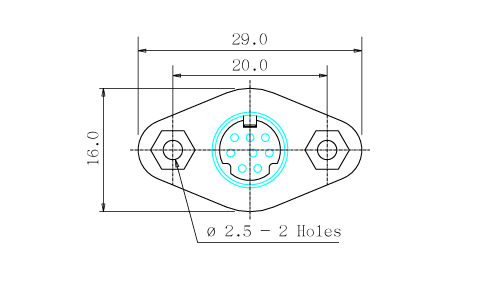

- Front View

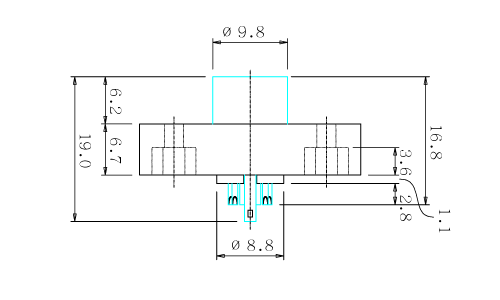

- Side View
-
Specifications Plastic Body: PVC Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD Grounding Piece: BSR-H 0.2t C5191 (PBP) Nickel Shield Pipe: BSR-H 0.4t C2680 (65/35) Nickel Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.6Kg~3Kg -
Characteristics Solder Vertical 3~8 Pin -
Substitute Items A-3002 -
Mating Items A-9001 A-9003
