Miniature DIN Circular Horizontal Socket A-1012
- A-1012-6P

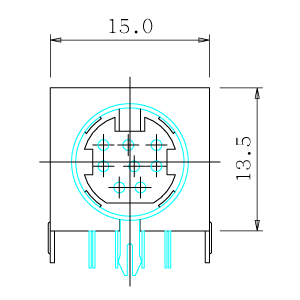

- Front View

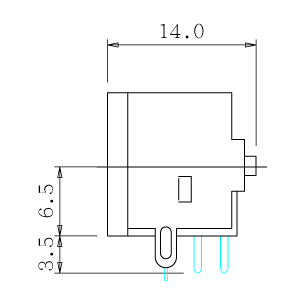

- Side View
-
Specifications Plastic Body: PBT D202G15 UL94 Plastic Base: PBT D202G15 UL94 Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD Earth Terminal: BSR-H 0.3t C2680 (65/35) Nickel Metal Housing: BSR-H 0.3t C2680 (65/35) Nickel Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.6Kg~3Kg -
Characteristics Right angle Snap-in fit terminal PCB mount Quick lock 4~8 Pin -
Substitute Items A-1011 -
Mating Items A-9007
