Miniature DIN Circular Vertical Socket A-1008
- A-1008

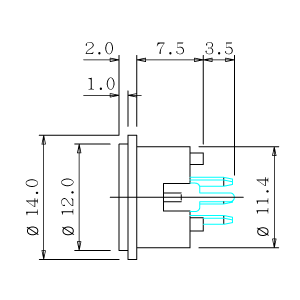

- Side View
-
Specifications Plastic Body: PBT D202G15 UL94 Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD Earth Terminal: BSR-H 0.3t C2680 (65/35) Nickel Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.9~3Kg -
Characteristics Solder Type Straight Type 3~8 Pin -
Substitute Items A-1010 A-1015 -
Mating Items A-9001 A-9003 A-9008
