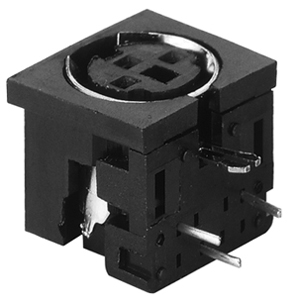

Miniature DIN Circular Horizontal Socket A-1001
- A-1001-3P

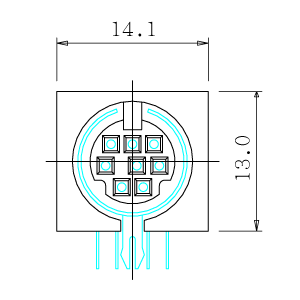

- Front View

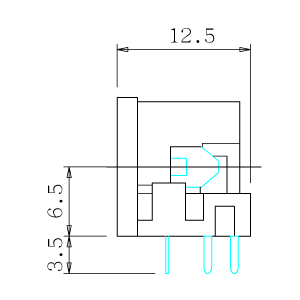

- Side View
-
Specifications Plastic Body: PBT D202G15 UL94V-0 Plastic Base: PBT D202G15 UL94V-0 Contact Terminal: BSR-H C5191 TIN Plating Earth Terminal: BSR-H C2680 Nickel Plating Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.9Kg~3Kg -
Characteristics Horizontal Dip contact PCB mount 3~8 Pin -
Alternative Sockets A-1002 A-1003 -
Mating Plugs A-9001 A-9002 A-9003
