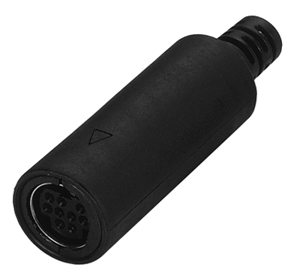

Miniature DIN Circular Assembly Jack A-2002
- A-2002

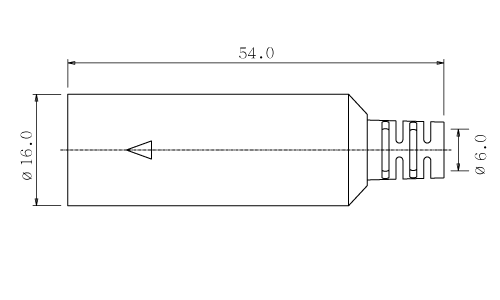

- Side View
-
Specifications Plastic Core: ABS PA-777D 94HB Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD Grounding Piece: BSR-H 0.2t C5191 (PBP) Nickel Shield Pipe: BSR-H 0.4t C2680 (65/35) Nickel Plastic Lining: ABS PA-777D 94HB Plastic Housing: EVA UE633 Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. -
Characteristics Solder Type Assembly 9 Pin -
Substitute Items -
Mating Items A-9005 A-9006
