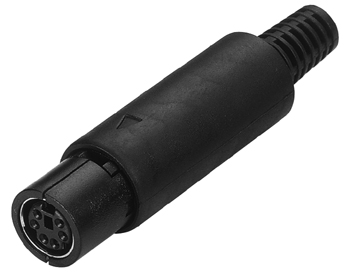

Miniature DIN Circular Assembly Jack A-2001



  • A-2001

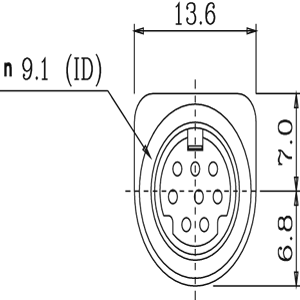

  • Front View

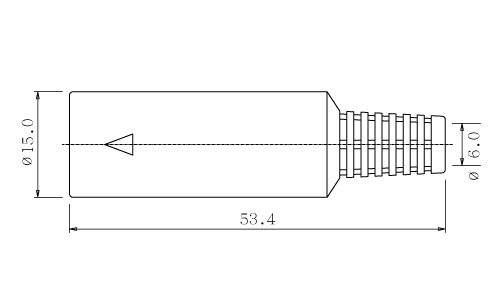

  • Top View
A2001
A2001 Front View
A2001 Side View



  • Specifications
    Plastic Core: PBT D202G15 UL94
    Contact Terminal: BSR-H 0.2t C5191 (PBP) Silver PTD
    Grounding Piece: BSR-H 0.2t C5191 (PBP) Nickel
    Shield Pipe: BSR-H 0.4t C2680 (65/35) Nickel
    Plastic Lining: PBT D202G15 UL94
    Plastic Housing: EVA UE633
    Contact Resistance: 30mΩ Max.
    Dielectric Strength: 250V AC / 1 Minute
    Insulation Resistance: 50MΩ Min. at 250V DC
    Rating: 100V AC 1A Max.
    12V DC 2A Max.
  • Characteristics
    Solder Type
    Assembly
    3~8 Pin


  • Substitute Items





  • Mating Items
    A-9001
    A-9003
