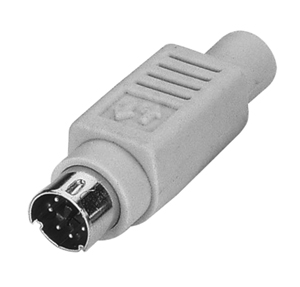

Miniature DIN Circular Assembly plug A-9006
- A-9006

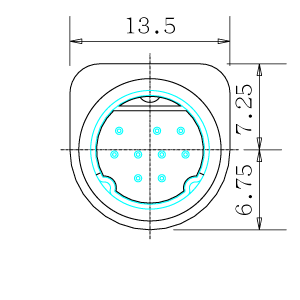

- Front View

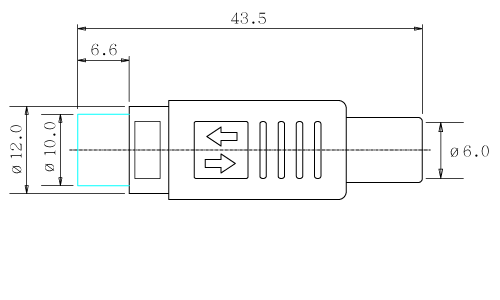

- Side View
-
Specifications Plastic Core: PBT D202G15 UL94 Contact Terminal: BSR-H 0.59D R-35 Silver PTD Metal Cover: BSR-H 0.4t C2680 (65/35) Nickel Plastic Body: EVA UE633 Clip Ring: BSR-H 0.8t Nickel Contact Resistance: 30mΩ Max. Dielectric Strength: 250V AC / 1 Minute Insulation Resistance: 50MΩ Min. at 250V DC Rating: 100V AC 1A Max. 12V DC 2A Max. Insertion Force: 4.5Kg Max. Withdrawal Force: 0.9Kg~3Kg -
Characteristics Solder Type Assembly 9 Pin -
Substitute Items A-9005 A-9009 -
Mating Items A-1005 A-1006 A-2002 A-3005
